Venturi Light

Optimum daylight through PC multi-wall panels

The VENTURILIGHT rooflight is a lighting element that uses the advantages of PC multi-wall panels as an alternative to conventional rooflights. The VENTURILIGHT lighting system is used in industrial, commercial and municipal buildings where ventilation can be managed in other ways. In the VENTURIAIR version, the element can also be used as a ventilation element.
Our VENTURILIGHT lighting system consists of an aluminium frame construction with an inserted 16 mm polycarbonate multi-wall panel. The translucent design of the hood infill allows natural daylight to enter the rooms and support or even replace artificial lighting.

As a rigid element with PC infill, the VENTURILIGHT rooflight ensures:

Natural daylight
Energy savings

Compared to conventional skylight elements and roof openings, the VENTURILIGHT offers enormous energy-saving possibilities in addition to its flexibility. In addition to high UV stability, the infills shine with the best light transmission values with shadow-free light diffusion (opal and softlite).

Applications

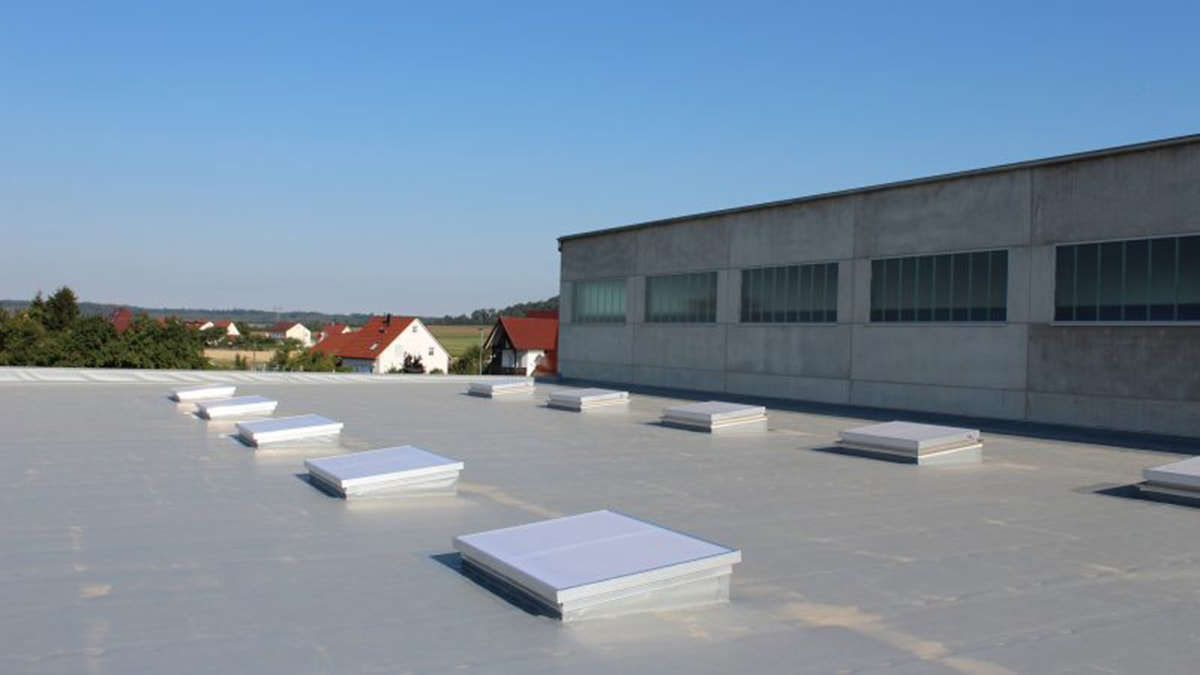

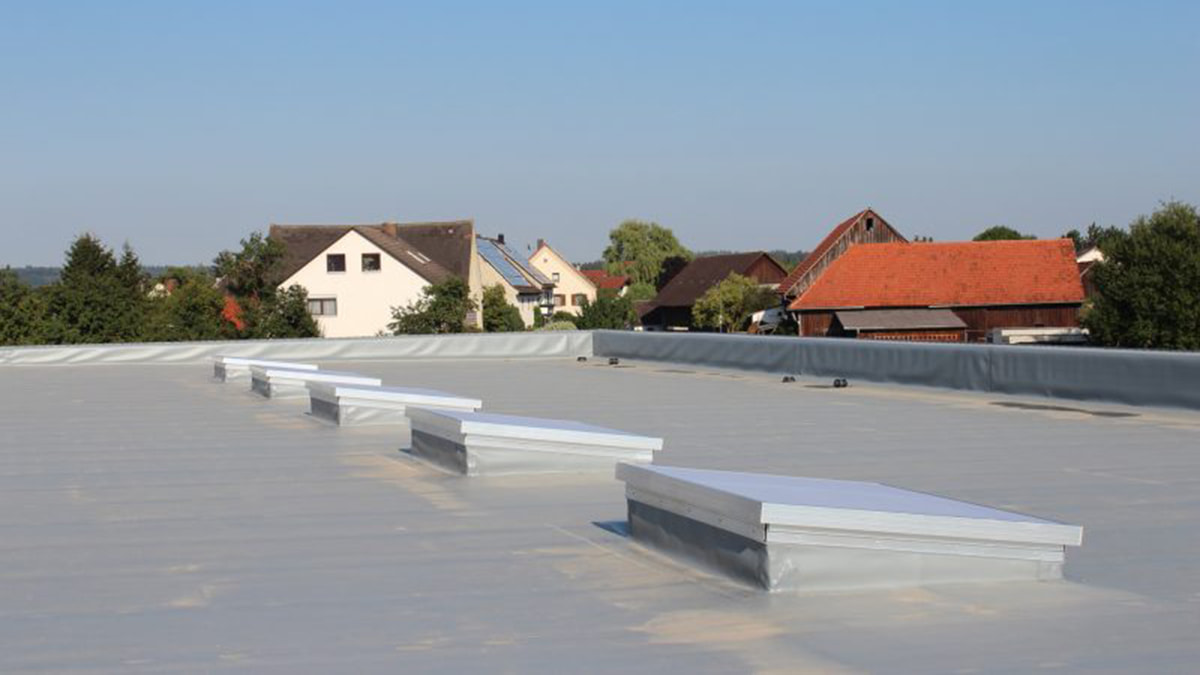

Flat roof

Advantages of the product

Why VENTURILIGHT?

Natural daylight illumination
High energy savings through thermal insulation
Ideal for flat roof applications with flexible sizes up to a roof opening size of 1800 x 2500 mm

Glare-free illumination when using PC Softlite
For new construction and retrofitting
Hailproof depending on the design

Technical details of the product

Venturi Light

Designs

The VENTURILIGHT daylight element complies with the European requirements according to EN 1873. The luminous efficacy of the light element depends on the PC hollow chamber material used. To achieve the best possible effect for your building, roda offers the following glazing types:

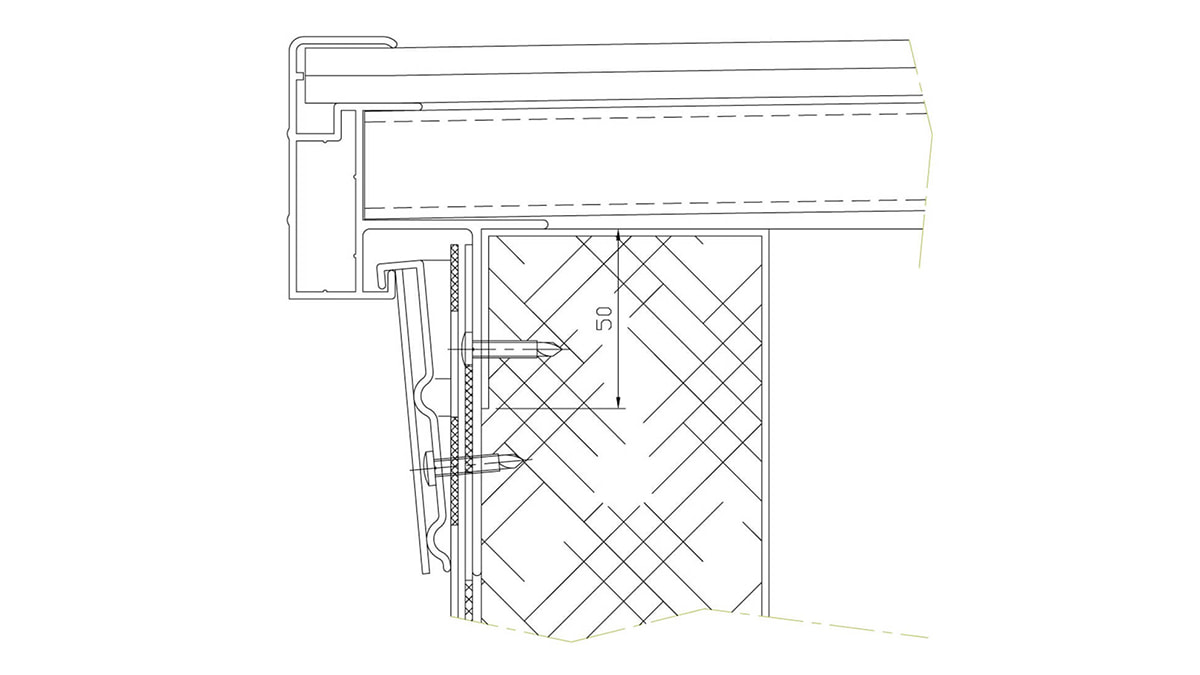

[Translate to English:] Tageslichtsystem Venturilight von roda - Schnitt - Detailzeichnung

POLYCARBONATE MULTIWALL SHEETS

As glazing made of 16 mm polycarbonate multi-wall panels (transparent, opal, softlite)

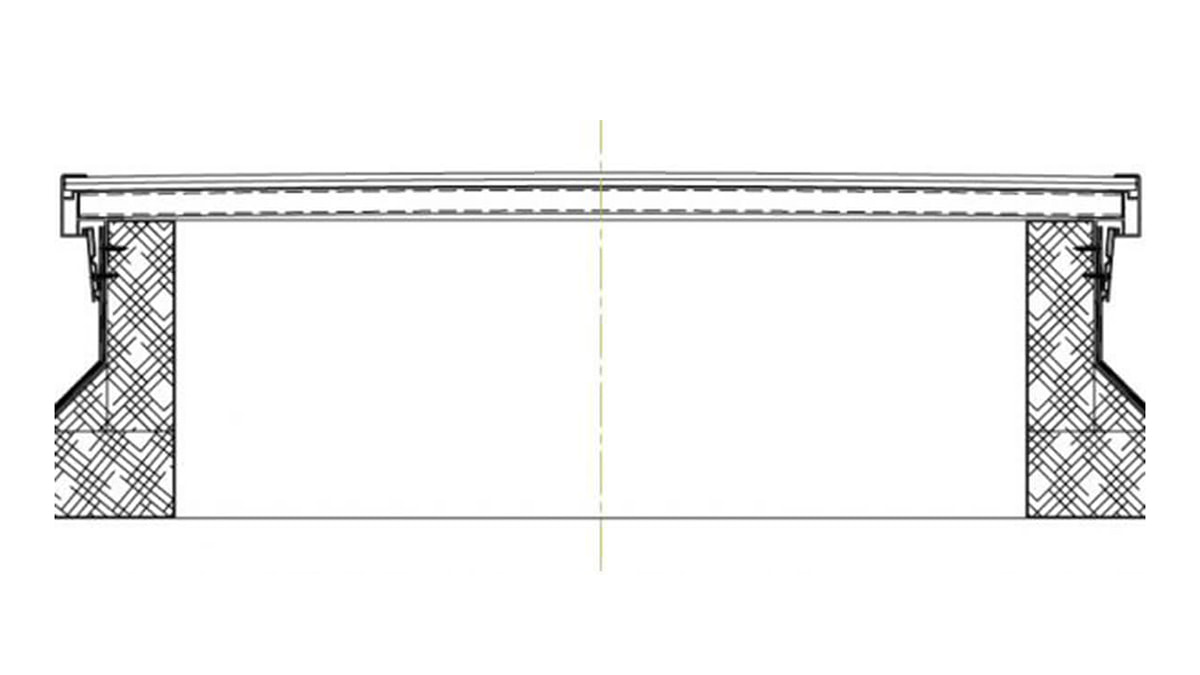

SECTIONAL DRAWING GLAZING

Sizes

Since our units are manufactured to customer order, we can customise the VENTURILIGHT to your roof opening dimensions in all sizes between 600 x 600 mm and 1800 x 2500 mm.

Accessories

Venturi Light

Roof connection variants

The area of use for the VENTURI Light is the flat roof. Our system can be connected directly to the base provided by the customer, or our EUROSOCKEL can be used to connect to the roof, with a maximum size of 1800 x 2500 mm.
