AEROJET

The AEROJET is a versatile louvre ventilator that serves as both a natural smoke and heat extraction system (SHEV) and an efficient ventilation unit. It combines the benefits of smoke and heat extraction with natural air exchange and daylight illumination in buildings.
Using the thermal buoyancy generated by pressure and temperature differences within the building, the AEROJET ensures effective natural ventilation or reliable smoke extraction in case of fire. For everyday use, an integrated rain sensor system provides dependable and weather-independent ventilation. In case of fire, the AEROJET opens automatically, triggered by a thermal release device (TRD), a central manual release, or the fire alarm system.

With its exceptional stability, lightweight construction, and wide range of applications, the new roda louvre ventilator AEROJET is specifically designed to captivate both architects and builders.

Fire protection – for your safety

Whether in industrial halls or office buildings – nowadays, materials are increasingly being used that release toxic gases in case of fire.

The AEROJET louvre ventilator has an automatic thermal trigger mechanism that reliably opens the device in case of fire when the specified trigger temperature is reached – regardless of other functions. In addition, the roda AEROJET can be controlled by a smoke detector pulse or via the fire alarm panel.


Natural ventilation without energy loss

In the summer months, production disruptions often occur in many industrial production halls due to excessive heat and poor air quality. The AEROJET louvre ventilator provides cost-effective and noise-free ventilation that does not require any additional energy expenditure. The ventilation effect becomes more and more effective as the internal heat load increases. The AEROJET adapts automatically due to the natural temperature difference and does not require any additional control to regulate ventilation.

Natural daylight illumination

Thanks to the transparent slats of the AEROJET louvre ventilator, natural daylight can enter the building even when the louvres are closed. This not only reduces lighting costs but also enhances employee well-being and motivation.

AEROJET as a supply air ventilator

The roda AEROJET offers versatile options for roof installation and can also be easily integrated into various wall constructions to ensure the necessary supply of fresh air. Since adequate ventilation cannot be guaranteed without fresh air, the use of supply air systems is essential. In both regular ventilation operation and fire scenarios, supplying fresh air to the lower areas of the building is the most effective approach. During a fire, the AEROJET facilitates the removal of hazardous smoke gases through incoming supply air while promoting the formation of a low-smoke layer near the ground. Additionally, the supply air helps cool materials located close to the fire source.

The AEROJET louvre ventilator is ideal for use in industrial, commercial, and public buildings.


to the brochure

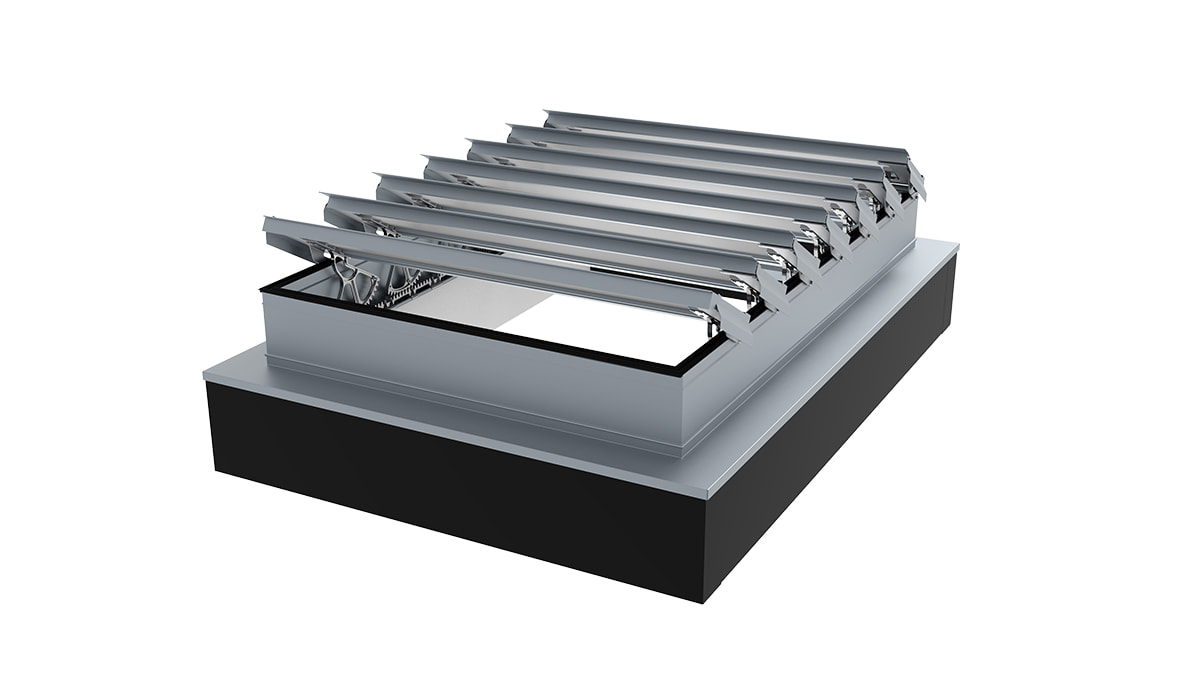

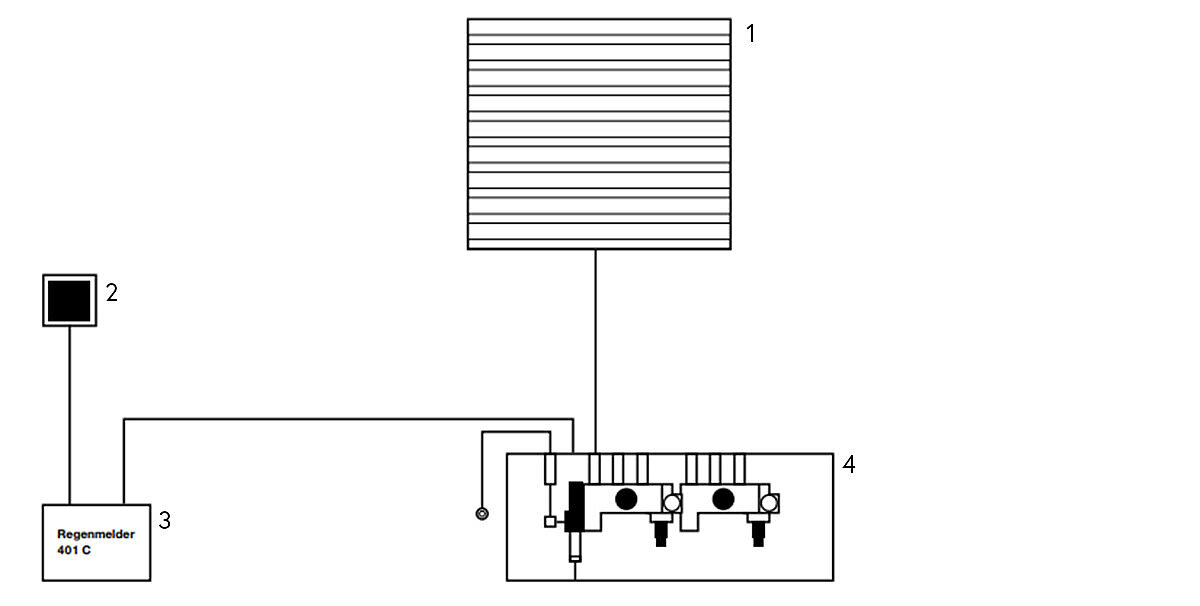

1 - Louvre ventilator AEROJET

2 - Weather-protected ventilation can be achieved using a rain sensor. The louvres automatically close upon the detection of moisture.

3 - Rain sensor system consisting of a rain sensor and evaluation unit.

4 - Pneumatic control cabinet for open-close control of universal louvres, with connection options for rain sensor automation and emergency fire control unit.
